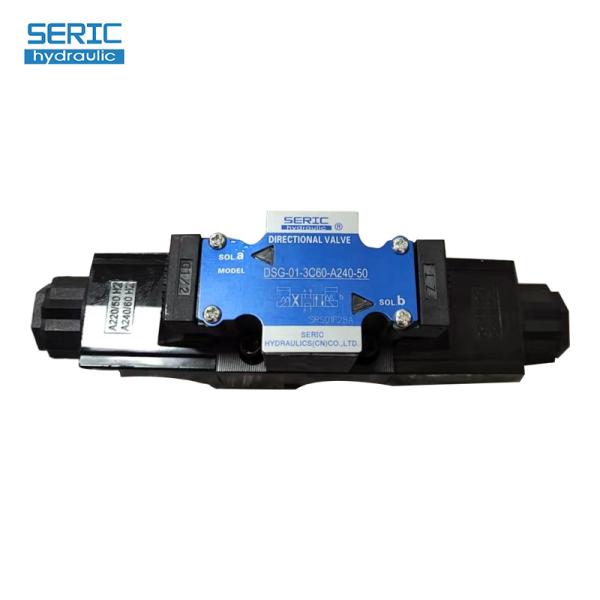

    Buy cheap DSG-01 Solenoid Operated Directional Valve for Industrial Machinery High Performance from wholesalers

    Buy cheap DSG-01 Solenoid Operated Directional Valve for Industrial Machinery High Performance from wholesalers
    • Buy cheap DSG-01 Solenoid Operated Directional Valve for Industrial Machinery High Performance from wholesalers
    • Buy cheap DSG-01 Solenoid Operated Directional Valve for Industrial Machinery High Performance from wholesalers

    DSG-01 Solenoid Operated Directional Valve for Industrial Machinery High Performance

    Ask Lasest Price
    Brand Name : Seric
    Model Number : DSG-01 Series
    Certification : CE, ISO
    Price : Negotiable
    Payment Terms : L/C,T/T,Western Union
    Supply Ability : 5000
    Delivery Time : 1-15 days
    • Product Details
    • Company Profile

    DSG-01 Solenoid Operated Directional Valve for Industrial Machinery High Performance

    DSG-01 Solenoid Operated Directional Valves


    Features

    Our next-generation Solenoid Operated Directional Valves deliver exceptional performance in high-pressure, high-flow applications while maintaining an ultra-low pressure drop. This leap in performance is made possible by a high-powered wet-type solenoid and an optimized 5-chamber flow path design.

    Superior Pressure & Flow Handling

    Significantly outperforms previous generations, offering both higher operating pressure and greater flow capacity.

    Minimized Pressure Drop

    Engineered for less pressure loss, directly contributing to lower energy consumption for your entire system.

    Compact & Lightweight

    Despite its high performance, the valve body remains compact and lightweight, especially in the DC double solenoid configuration.

    Shockless Operation Option

    In addition to the standard high-performance valves, a shockless variant is available to greatly reduce noise and vibration during spool shifts.

    Exceptional Operational Stability

    The robust magnetic force and strong spring ensure reliable and stable operation, even in the presence of minor contaminants.

    Specifications

    Valve Type
    		 Model Numbers Max. Flow
    L /min
    (U.S.GPM)    		 Max. Operating Pressure MPa (PSI) Max. T-Line Back Pres. MPa (PSI) Max. Change over Frequency
    min-1 (Cycles/Min)    		 Approx. Mass
    (kg)
    Standard Type DSG-01-3C∗-∗-50 63 (16.6) 31.5 (4570)
    {Spool Type 60 Only 25(3630)}    		 16 (2320) 300
    {R Type Sol. Only 120}    		 2.2
    DSG-01-2D2-∗-50 2.2
    DSG-01-2B∗-∗-50 1.6

    Shock-less Type    		 S-DSG-01-3C∗-∗-50 40 (10.6) 16 (2320) 16 (2320) 120 2.2
    S-DSG-01-2B2-∗-50 1.6


    Solenoid Ratings


    Valve Type
    		 Electric Source Coil Type Frequency
    (Hz)    		 Voltage (V) Current & Power at Rated Voltage
    Source Rating Serviceable Range Inrush (A) Holding (A) Power (W)
    Standard Type

    Shock-less Type    		 AC A100 50 100 80 - 110 2.42 0.51 ―
    60 100 90 - 120 2.14 0.37
    110 2.35 0.44
    A120 50 120 96 - 132 2.02 0.42
    60 108 - 144 1.78 0.31
    A200 50 200 160 - 220 1.21 0.25
    60 200 180 - 240 1.07 0.19
    220 1.18 0.22
    A240 50 240 192 - 264 1.01 0.21
    60 216 - 288 0.89 0.15
    DC
    (K Series)    		 D12 ― 12 10.8 - 13.2 ― 2.45 29
    D24 24 21.6 - 26.4 1.23
    D48 48 43.2 - 52.8 0.61
    AC→DC Rectified (R) R100 50/60 100 90 - 110 ― 0.33 29
    R200 200 180 - 220 0.16


    Model Number Designation

    F-
    		 S- DSG -1 -2 B 2
    Special Seals Shock less Type Series Number Valve Size Number of Valve Positions Spool-Spring Arrangement Spool Type
    F:
    For Phosphate Ester Type Fluids
    (Omit if not Required)    		 None:
    Standard Type    		 DSG:
    Solenoid Operated Directional Valve    		 1 3 C:
    Spring Centered    		 2, 3, 4, 40, 60, 9, 10, 12
    2 D:
    No-Spring Detened    		 2
    B:
    Spring Offset    		 2, 3, 8
    S:
    Shock-less Type    		 3 C:
    Spring Centered    		 2, 4
    2 B:
    Spring Offset    		 2


    A
    		 0 -C -N -50 -L
    Special Two Position Valve
    (Omit if not Required)    		 Coil Type Manual Override Electrical Conduit Connection Design Number Models with Reverse Mtg. of Solenoid
    (Omit if not required)
    ― AC:
    A100 A120
    A200 A240

    DC:
    D12 D24 D48

    R:
    (AC→DC)
    R100 R200

    None:
    Manual Override Pin


    C :
    Push Button and Lock Nut (Option)

    None:
    Terminal Box Type

    N:
    Plug-in Connector Type


    N1:
    Plug-in Connector Type with Indicator Light (Option)

    		 50 ―
    ― ―
    A
    B    		 L
    ― DC:
    D12 D24 D48
    R:
    (AC→DC)
    R100 R200    		 ―
    ― L
