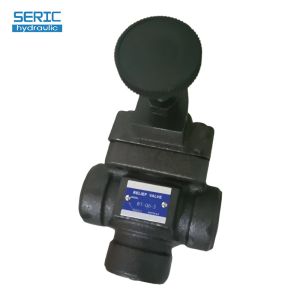

04 Series BT-04-H-32 Pilot Operated Relief Valves

Ask Lasest Price
Brand Name :	Seric
Model Number :	BT Series
Certification :	CE, ISO
Price :	Negotiable
Payment Terms :	T/T,L/C,Western Union
Supply Ability :	5000
Delivery Time :	1-15 days

Add to Cart

Product Details
Company Profile

04 Series BT-04-H-32 Pilot Operated Relief Valves

Features

l These relief control valves are commonly found in basic hydraulic systems, where they help keep pressure levels consistent.

l Pilot-operated relief valves feature a straightforward design and offer great value.

l The vent circuit allows for remote control and system unloading.

l They’re engineered to shield hydraulic systems from excessive pressure.

l A cast iron body delivers strength and durability, ensuring a longer service life.

l Hardened steel internal parts also contribute to extended longevity.

Model Number Designation

B	T	-4	32
Series Number	Mounting Type	Specification	Pressure Rating
B: Pilot Operated Relief Valve	T: Tubular Mounting	04: 16 Nominal Diameter (1/2) 06: 25 Nominal Diameter (3/4) 10: 32 Nominal Diameter (11/4)

Precautions for Use

l The back pressure at the oil return port must not exceed 0.5 MPa.

l The oil return pipe should directly return to the oil tank and must not be connected to the oil return pipes of other valves.

l When adjusting the pressure regulating handle, turn clockwise to increase the pressure and counterclockwise to decrease it. Be sure to tighten the fixing nut after pressure adjustment.

l When the flow rate is small, the set pressure is prone to instability. For specifications 04 and 06, use a flow rate of more than 8 L/min; for specification 10, use a flow rate of more than 15 L/min.
