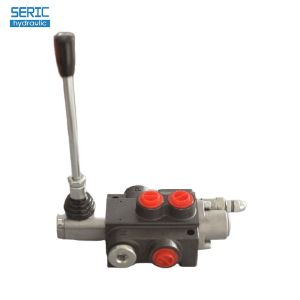

P40 Series 1P40 Monoblock Valve with Versatile Handle Mounting

P40 Series 1P40 Monoblock Valve Manual Directional Control Valves

P40 Series Features

The P40 hydraulic distributor controls the on/off operation of hydraulic fluid and diverts it between fluid sources (hydraulic pumps), actuators (hydraulic cylinders, motors, etc.), and the reservoir. It is available with up to 6 spools.

Product Description

- Monoblock hydraulic joystick control valve: Compact design for space-constrained installations

- High-tensile cast iron monoblock structure for durability

- Precision-ground, hard chrome-plated spools ensure extended service life

- Versatile handle mounting: Vertical or horizontal options

Specifications

Parameter	Metric Value	Imperial Value
Nominal flow rate	40 L/min	10.6 US GPM
Operating pressure (max)	250 bar	3626 psi
Operating range	15 ~ 75 mm²/s	15 ~ 75 cst
Minimum viscosity	12 mm²/s	12 cst
Maximum viscosity	400 mm²/s	400 cst
Ambient temperature range	-40° ~ 80°C	-40° ~ 176°F
Structure	Monoblock: 1 - 7 sections	-

Applications

Suitable for loaders, special-purpose vehicles, truck-mounted cranes, wreckers, scrubbers, and dynamic compactors. Effectively controls actuators such as motors and hydraulic cylinders.
